Production Line for Continuously Corrugated, Flexible Pre-Insulated Pipes (PERT/PEX), for Isoproflex-Type Pipes
Our flexible polymer pre-insulated pipes offer an integrated solution for efficient fluid conveyance. The core design seamlessly combines a durable inner service pipe, efficient thermal insulation, and a tough outer PE sheath.
As the ideal choice for district energy systems, industrial utilities, and building water supply networks, these pipes provide outstanding adaptability. Their flexibility and corrosion resistance facilitate easy installation in tight spaces, ensuring long-term reliability for both exposed and buried runs in demanding urban environments.
Product Description
The Flexible polymer pre insulated pipes production line is an advanced equipment for producing polymer pressure inner pipes (PERT, PEX) and insulating the inner pipes with polyurethane foam.
The characteristic of this production line is that the pouring process of polyurethane foam is continuous. The inner pipe is continuously conveyed into the pouring area together with the polyurethane foam mixture, then coated and formed with a film, and then passed through a round die head to be coated with the outer protective layer extruded by the extruder.
The pipe coated with the PE outer protective layer can be coiled or cut to a fixed length after passing through the water cooling zone.
The flexible pre-insulated pipes production line consists of the following components:
|
1
|
Production line for inner pressure pipe (PERT, PEX)
|
|
2
|
Inner pipe unwinding device
|
|
3
|
Pipe feeding device
|
|
4
|
Conveyor
|
|
5
|
Pipe centering device
|
|
6
|
Preheating and temperature control
|
|
7
|
Film feeding device
|
|
8
|
High-precision foaming machine
|
|
9
|

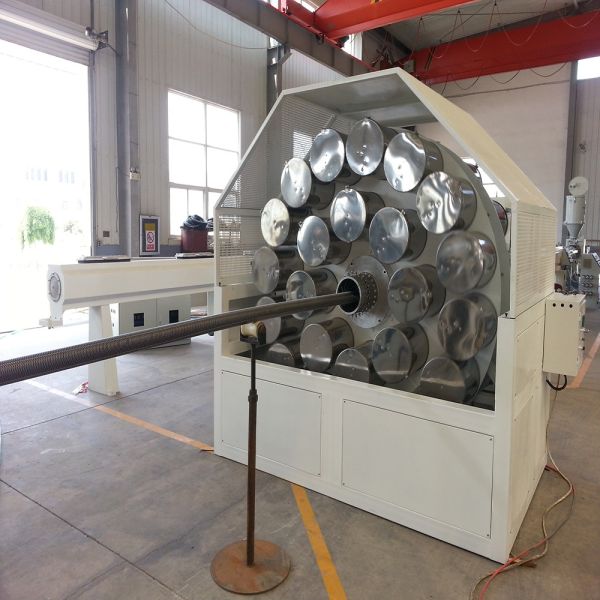

Corrugator / Corrugating machine with temperature control
|
|
10
|
Extruder for casing pipe and water cooling
|
|
11
|
Pull-off device
|
|
12
|
Winding machine
|
|
13
|
Control system
|

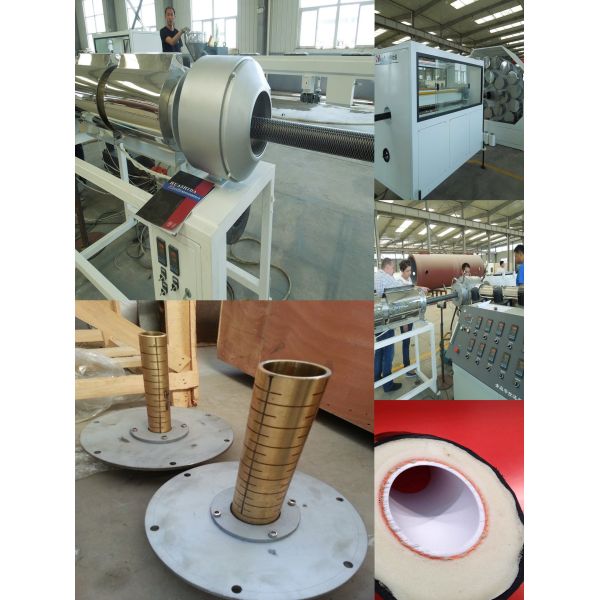

Detailed Photos
Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.
Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.
We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.
